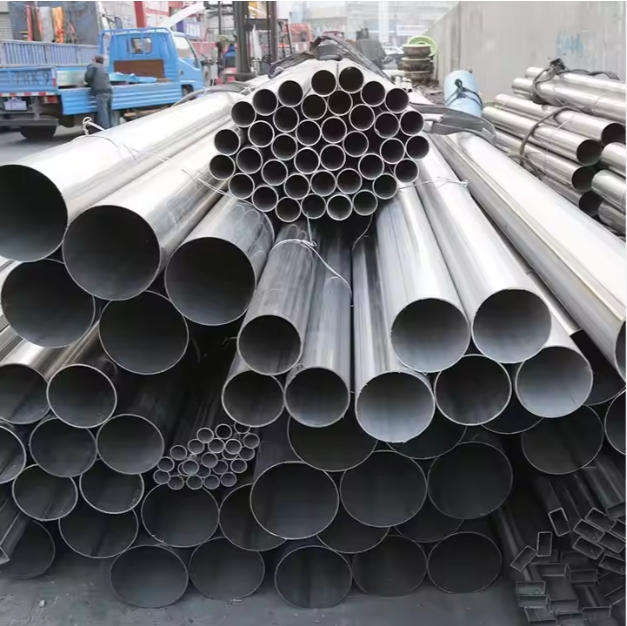

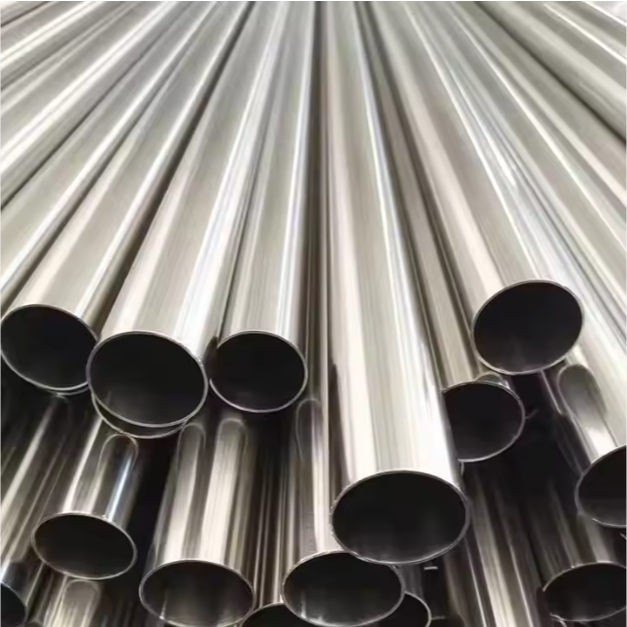

Cold Drawn Stainless Steel Tube

1. Uniform organization: Cold drawn seamless tubes are manufactured through cold drawing technology, which means they have a more uniform organizational structure. Compared with hot drawn seamless pipes, its grain size is smaller and its structure is denser. This uniform organizational structure gives cold drawn seamless tubes better mechanical properties and durability.

2. High dimensional accuracy: Cold drawn seamless pipes have high dimensional accuracy and can meet various demanding engineering requirements. Due to multiple passes of drawing and rolling during the cold drawing process, the outer diameter and wall thickness of the pipeline can be controlled to ensure the dimensional accuracy of the pipeline.

Contact Now E-Mail Telephone WhatsApp

Product Details

Cold Drawn Stainless Steel Tube is a stainless steel tube processed through cold drawing technology, which has excellent corrosion resistance, high temperature resistance, and high strength, and is widely used in multiple industries

Due to the advantages of no oxide layer on the inner and outer walls of the precision steel tube, no leakage under high pressure, high precision, high finish, no deformation in cold bending, no flaring, no cracks in flattening, etc., it is mainly used to produce products for pneumatic or hydraulic components, such as cylinders or The oil cylinder can be a seamless pipe or a welded pipe.
Cold Drawn Stainless Steel Tube

Product Name	Carbon Steel Pipe
Material	A53(A.B)A106 (A. B).0345,16Mn, 10#, 20#,45# S235JR. S355JR, Q320,Q360,Q410,Q460,Q490 ASTMA252, Gr.2,Gr.3.ST37, ST42, ST52, GrB, X42 X46 X52 X5 X6 X65 X70. 30CrMo .etc
Wall Thickness	2.5-75mm
Outer Diameter	13.7-1219.2mm
Length	Length:Single random length/Double random length 5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
Standard	API 5L, ASTM A53-2007, ASTM A671-2006, ASTM A252-1998, ASTM A450-1996, ASME B36.10M-2004, ASTM A523-1996, BS 1387, BS EN10296, BS ANSI B36.1 6323, BS 6363, BS EN10219, GB/T 3091-2001, GB/T 13793-1992, GB/T9711
Section Shape	Square, Rectangular, Round,
Pipe Ends	Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Surface Treatment	1. Galvanized,bare 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement

INCH	OD	API 5L ASTM A53 A106 Strandard Wall Thickness
	(MM)	SCH 10	SCH 20	SCH 40	SCH 60	SCH 80	SCH 100	SCH 160
		(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)
1/4"	13.7			2.24		3.02
3/8"	17.1			2.31		3.2
1/2"	21.3	2.11		2.77		3.73		4.78
3/4"	26.7	2.11		2.87		3.91		5.56
1"	33.4	2.77		3.38		4.55		6.35
1-1/4"	42.2	2.77		3.56		4.85		6.35
1-1/2"	48.3	2.77		3.68		5.08		7.14
2"	60.3	2.77		3.91		5.54		8.74
2-1/2"	73	3.05		5.16		7.01		9.53
3"	88.9	3.05		5.49		7.62		11.13
3-1/2"	101.6	3.05		5.74		8.08
4"	114.3	3.05	4.50	6.02		8.56		13.49
5"	141.3	3.4		6.55		9.53		15.88
6"	168.3	3.4		7.11		10.97		18.26
8"	219.1	3.76	6.35	8.18	10.31	12.70	15.09	23.01
10"	273	4.19	6.35	9.27	12.7	15.09	18.26	28.58
12"	323.8	4.57	6.35	10.31	14.27	17.48	21.44	33.32
14"	355	6.35	7.92	11.13	15.09	19.05	23.83	36.71
16"	406	6.35	7.92	12.70	16.66	21.44	26.19	40.49
18"	457	6.35	7.92	14.27	19.05	23.83	29.36	46.24
20"	508	6.35	9.53	15.09	20.62	26.19	32.54	50.01
22"	559	6.35	9.53		22.23	28.58	34.93	54.98
24"	610	6.35	9.53	17.48	24.61	30.96	38.89	59.54
26"	660	7.92	12.7

The precision steel pipe has high dimensional accuracy and high surface finish, and there is no oxide film on the inner and outer surfaces of the steel pipe after heat treatment and mechanical processing.
